PD194Z-E20 digital 3 phase din rail mounted multi-function kwh meter rs485

FOB Reference Price:Get Latest Price
US $129.4-194.1 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
PD194Z-E20
Display Type:
Digital Only
Phase:
Three Phase, 3 Phase
Measuring Energy Range:
0-999999
Accuracy Class:
0.5
Operating Temperature:
-25~+70℃

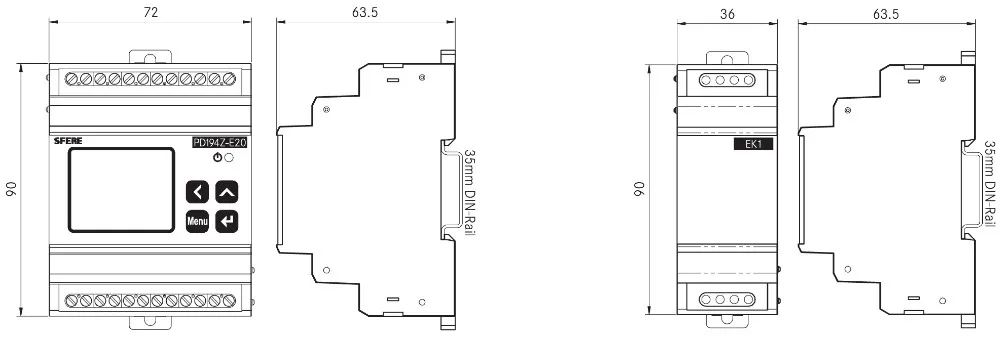

Dimensions:
72*90*63.5mm
Product name:
PD194Z-E20 din rail mounted digital multi-function power meter
Certificate:
CE ISO9001
Type:
DIN Rail Mounting Power Meter
Communication:
RS485/Modbus
Display:
LED
Warranty:
2 Years
Rated current:
AC 1A/ 5A
Frequency:
45-60Hz
Service:
OEM, ODM
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing or as per client's requirement.
Port
Shanghai port

1. Product description



PD194Z-E20 has the common power parameters measurement, perfect electric energy measurement and electric energy quality analysis and other functions, and is equipped with many I/O modules for status monitoring and control of the field equipments. This equipment has the standby electric energy metering function, which can be activated through the external signal. This equipment can be easily integrated with a variety of intelligent power distribution systems and energy management systems, to share abundant monitoring data and power quality data.



2.Product display





3. Technical Specifications





Parameters

Accuracy grade

U, I: grade 0.2; P, Q, PF: grade 0.5; harmonics: B grade;

Display mode

LCD



Signal input

Measurement network

Three-phase four-wire, three-phase three-wire

Voltage

Rated value

AC100V/AC380V

Overload

Continue: 1.2 times; instantaneous: 2 times / 10s

Power consumption

<0.1VA(each phase)

Impedance

>1MΩ

Current

Rated value

AC1A, AC5A

Overload

Continue: 1.2 times; instantaneous: 2 times / 10s

Power consumption

<0.1VA (each phase)

Impedance

<20mΩ

Electric leakage measurement

AC 1A / 1mA leakage current transformer access

Temperature measurement

PT100

Frequency

45~65 Hz,Accuracy: ±0.01Hz

Power supply

Working range

AC/DC:80V~270V

Power consumption

<5VA

Electric energy pulse output

One way, optocoupler isolation

Expansion Module

Communication module EC1

One-way RS-485 communication MODBUS-RTU protocol,

Communication rate: 1200 ~ 19200bps

Switching module

EK1



4-way dry node access way,

2-way relay output, with capacity of AC250V/5A

Working environment

-25~70℃,Relative humidity ≤93%, non-corrosive gases site

Storage environment

-40~85℃,Relative Humidity ≤93%

Safety

Insulation

Resistance from signal, power supply and output terminal to shell >100MΩ

Withstand voltage

Input and power supply >2kV; input and output >1kV; power supply and output 2kV



4.Function
