Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Elecnova
  • Model Number: SDT11L/13L
  • Display Type: no display
  • Accuracy Class: 0.5~1
  • Supply Voltage: AC/DC 80~270V
  • Operating Temperature: -10°C~55°C
  • Weight: 200g
  • Product Name: Puncture Mounted Multifunction Power Meter
  • COLOR: black
  • Durability period: 2 years

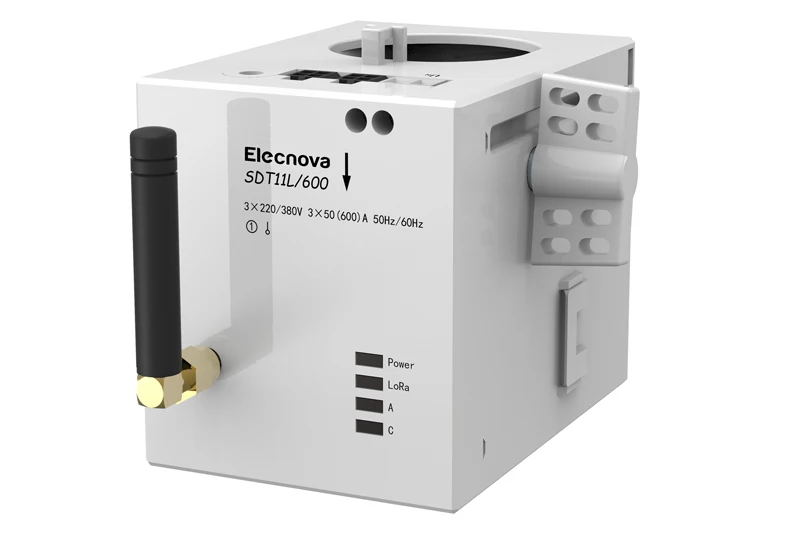

Puncture Mounted Power Meter



Product Description

 Puncture-mounted power meters can measure single-phase or three-phase loop power grid parameters, including voltage, current, power, frequency, energy, demand, limits, total harmonic distortion, 2-31 harmonic content, voltage and current imbalance and other parameters. The meter adopts the open current transformer access method, which supplies power to the entire instrument and measures the full power parameter through the puncture method. The product can be installed without interrupting power. The instrument communication can use LoRa wireless or RS-485 interface, and the communication protocol adopts ModBus-RTU Protocol.

 Model Description

Selection Table

Functions

Notes: "." means this function is available; "-" means this function is not available.

Installation and wiring

Dimensions

SDT11L/SDT13L size



SDT11R/SDT13R size

Size of SDT13 matching A phase/C phase transformer SDT10

The length of SDT10 cable is 1m by default, and the special length can be customized.

Installation
SDT11L/SDT11R installation

Note: In the field installation, it is recommended to use insulating gloves to operate to prevent electric shock.

SDT13L/ SDT13R installation

Note: In the field installation, it is recommended to use insulating gloves to operate to prevent electric shock.
