Elecnova SFR-M series separate compensation integrated power low voltage kvar power capacitor bank

FOB Reference Price:Get Latest Price
$200.00 - $500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
SFR-M
Product name:
kvar power capacitor bank
Certificate:
CE/ISO9000
Type:
Capacitor
Warranty:
2 Years
Storage temperature:
25℃~55℃
Altitude:
<2000m
Switching mode:
Zero-crossing switch
Service:
OEM ODM
Current Accuracy:
≤0.5 %
Voltage Accuracy:
≤0.5 %
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month kvar power capacitor bank
Packaging & Delivery
Packaging Details
1 ctn per piece or as per client's requirement.
Port
Shanghai
Product Description

Elecnova SFR-M series separate compensation integrated power low voltage kvar power capacitor banks are mainly used for reactive power compensation in the fields where harmonics are not very serious. They are suitable for local compensation, dispersion compensation and centralized compensation. This series of products adopt double zero-crossing switch technology to make sure there is no over voltage or high inrush current during capacitor switching so as to prolong capacitor life and switch life. SFR-M series capacitor modules have many protection functions such as capacitor internal temperature protection, grid harmonic content protection, over current protection, over voltage protection and three phase unbalance protection which make them more reliable.

Outline dimension
Length(L)mm
Width (W)mm
Height (H)mm
Distance between fixing poles mm
SFR-M-2020-P7(14)
430
280
290
295×410
SFR-M-2010-P7(14)
430
280
290
295×410
SFR-M-50-P7
430
280
290
295×410
SFR-M-40-P7(14)
370(430)
280
290
295×350(410)
SFR-M-30-P7(14)
370(430)
280
290
295×350(410)
SFR-M-20-P7(14)
370(430)
280
290
295×350(410)
SFR-M-15-P7(14)
370(430)
280
290
295×350(410)
SFR-M-10-P7(14)
370(430)
280
290
295×350(410)
Products Show

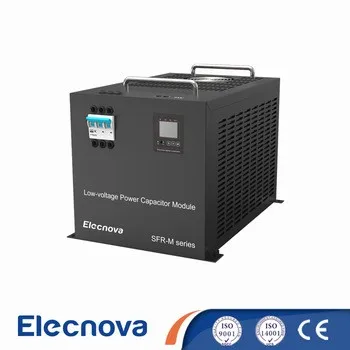

Elecnova SFR-M series separate compensation integrated power low voltage kvar power capacitor bank

SFR-M series power capacitor modules are mainly used for reactive power compensation in the fields where harmonics are not very serious. They are suitable for local compensation, dispersion compensation and centralized compensation.

Function
Technical parameter
Function
Technical parameter
Feature (accuracy)


Measurement
Current
≤0.5 %(within the range 20%~120% of rated current)
Voltage
≤0.5 %(within the range 50%~120% of rated voltage)
Power
≤1%
Power factor
±0.01
                                  Switching mode
Zero-crossing switch


Compensation operation
Working voltage
AC 380V±20%, distortion rate≤5%
Consumption
≤5VA
Max. working current
1.35*In
Switching inrush current
≤*In

Local protection
Over current
0~100A  (can be set)
Over temperature
20℃~80℃(can be set)
Unbalance
0%~200%(can be set, only for total compensation)

Environment temperature
Working temperature
-25℃~50℃
Storage temperature
-25℃~55℃
                                          Altitude
<2000m
Monitoring Solution
Production Process

                              SMT

                           AOI Test

                   Plug-In Mounting

                       Wave Soldering

                          Assembling

                            Inspection

FAQ

Q: Are you trading company or manufacturer ?

A:
We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?

A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?

A: Free sample is available, freight collect.

Q: What is your terms of payment ?

A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
