PS194Q-9K1 96*96mm single phase digital LED display reactive power meter with rs485

FOB Reference Price:Get Latest Price
US $70.6-105.8 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SFERE
Model Number:
PS194Q-9K1
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
0-9999
Accuracy Class:
0.5/0.2
Operating Temperature:
-40~+70℃
Dimensions:
96*96mm
Product name:
96*96mm single phase digital LED display reactive power meter rs485
Certificate:
CE ISO9001
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing or as per client's requirement.
Port
Shanghai



 1 Product Description11.Product introduction



PS19 series digital display power meters are used to measure single phase or three phase active power or reactive power in low voltage distribution system. They are equipped with analog output, relay output, digital input and communication supporting Modbus-RTU protocol. Their transmitting ratio also can be changed through programming. There are different choices of outline size for this kind of meters. So they are suitable to replace analog pointer ammeters.

This series digital display AC power meters have high environment adaptability because their working temperature range is -40~70 and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.



2.Outline dimension



Outline code

Pointer meter model

Panel(mm2)

 Cut-out(mm2)

 Installation depth(mm)

2

42 square type

120×120

111×111

55.5/76

3

6 square type

83×83

76×76

75

9

9 square type

96×96

91×91

75/98

A

61 square type

74×74

67×67

75/90

5

5 slot type

96×48

91×44

68.5/82



3.Technical specification



Electrical feature

Accuracy

 0.2%, 0.5%(defaulted)

Data refresh rate

1s

Input

Voltage

Rated value

 AC 100V, 220V, 380V

Range

 (0.3 ~ 1.2)Un

Overload

Continuous 1.2In,Instantaneous 2In/5min

Current

Rated value

 AC 1A,5A

Range

 (0.05 ~ 1.2)In

Overload

 Continuous 1.2In,Instantaneous 10In/5s

Frequency

45~65Hz

Power supply

Working range

AC 80~270V (50/60Hz),DC 80~270V,DC 24V

Consumption

≤5VA

Digital input

Dry contact mode

Relay output

Contact capacity (resistive):AC 5A/250V,DC 5A/30V

Analog output

Current output

DC 4~20mA, 0~20mA etc., load ≤350Ω

Voltage output

DC 0~5V, 1~5V etc., load ≥20kΩ

Communication

RS485 interface,Modbus-RTU protocol,baud rate 2400~9600bps

Environment

Protection degree

Panel IP64, case IP20

Working temperature

-40~70℃(LED), -25~70℃(LCD)

Storage temperature

-40~85℃

Relative humidity

≤93%RH

Insulating ability

Between power and input or output≥AC2kV,

Between input and output≥AC1kV

Altitude

2500m

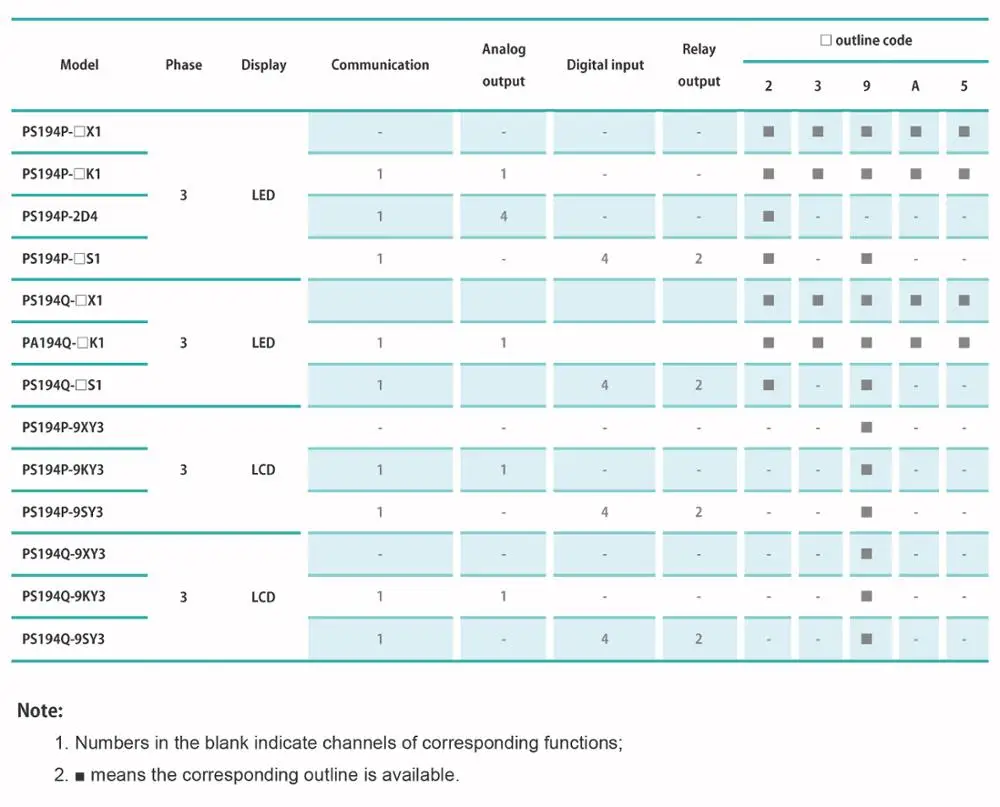

4.Similar products
