Sfere700-C1 electricity monitor system din-rail mount energy meter module communication RS485 port

FOB Reference Price:Get Latest Price
US $88.2-105.8 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
Sfere700-C1
Display Type:
Other
Phase:
Other
Measuring Energy Range:
0-999999
Accuracy Class:
1/0.5
Output Voltage:
DC24V
Operating Temperature:
-20~+70℃

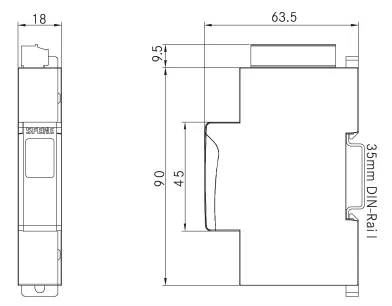

Dimensions:
18*90*63.5mm
Product name:
Din-rail mount energy meter module communication RS485 port
Certificate:
CE ISO9001
Warranty:
2 Years
Communication:
RS485/ MODBUS-RTU
Working temperature:
-20°C~70°C
Storage temperature:
-40°C~85°C
Relative humidity:
≤95%RH
Protection:
IP20
Rated voltage:
DC 24V
Power consumption:
≤0.5W
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing or as per client's requirement.
Port
Shanghai

1.Product introduction



Sfere700 distributed multi-loop power monitoring unit is a new generation of electrical parameter monitoring product which is researched and developed by Jiangsu Sfere Electric. It can realize real-time electrical parameter measurement, energy metering, power quality analysis, status monitoring and off-limit alarm functions. Sfere700 can measure 32 three-phase circuits or 96 single-phase circuits at most. It is equipped with color LCD and touch type buttons which are used for convenient operation. It also has compact size and easy installation. All these functions and advantages make Sfere700 to be a good solution for multi-loop electrical parameter monitoring in industrial fields.



2.Product display





3.Technical specification



Working environment

Working temperature

-20°C~70°C

Storage temperature

-40°C~85°C

Relative humidity

≤95%RH,no condensation

Working altitude

≤2500m

Protection

IP20

Insulation

Signal, power supply and output terminal to case resistance>100MΩ

Working power supply

Rated range

DC 24V

Power consumption

≤0.5W

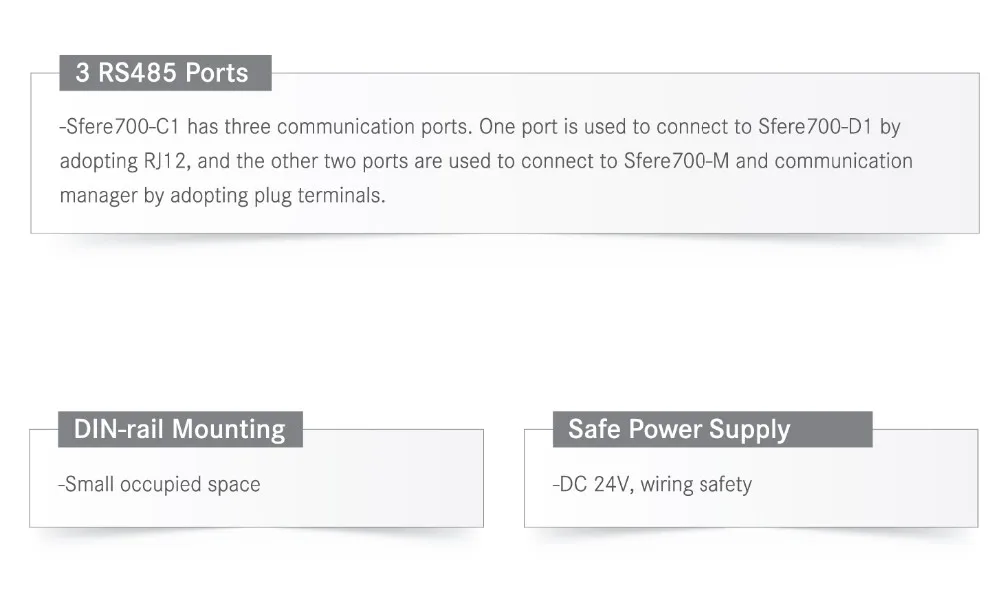

Communication interface

Communication interface 1

Detachable screw terminal, connect to Sfere700-M

Communication interface 2

RJ12, connect to host computer

Communication interface 3

Detachable screw terminal, connect to Sfere700-D1

Physical interface

RS485

Communication speed

9600bps at most

Communication protocol

Modbus-RTU

Isolation voltage

2500 V AC

Real-time clock

Error

≤0.5s/day



4.Function
