Elecnova Sfere720C LCD display 1st-63rd harmonic RS485 digital 3 phase bi-directional energy meter

FOB Reference Price:Get Latest Price
$279.40 - $391.20 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
Sfere720C
Display Type:
Digital Only
Phase:
Three Phase
Measuring Energy Range:
0-99999999
Accuracy Class:
0.2
Output Voltage:
AC100V/220V/380V
Operating Temperature:
-25~+70℃

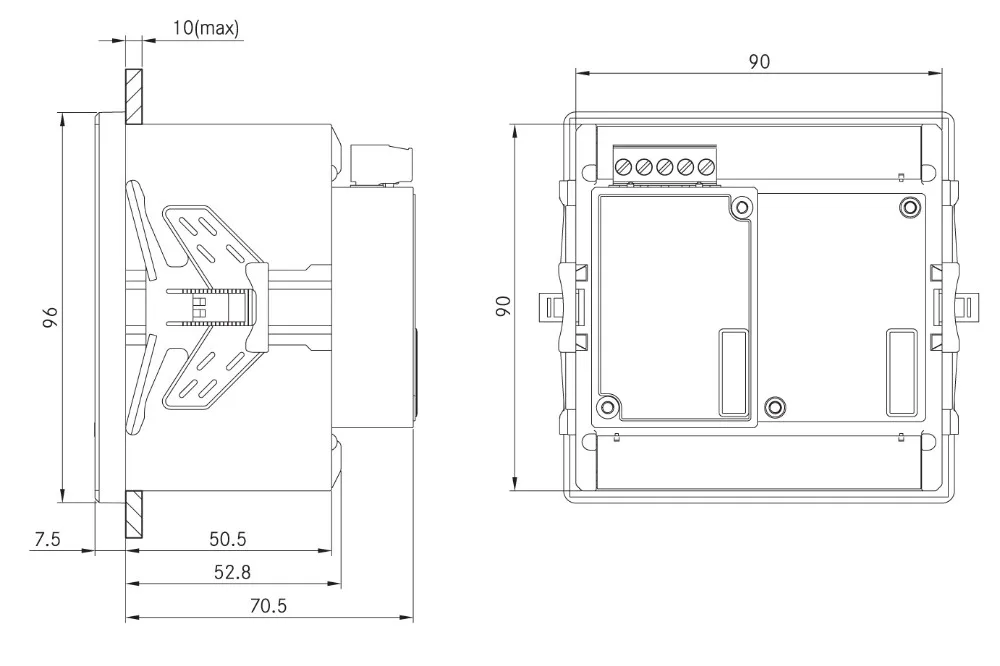

Dimensions:
96*96mm
Product name:
bi-directional energy meter
Certificate:
CE ISO9001
Warranty:
2 Years
Display:
Digital LCD Display
Frequency:
45-65Hz
Working Range:
AC/DC 80V~270V
Communication:
RS-485/Modbus/2-wire
Storage temperature:
-30℃~80℃
Standard:
IEC61010-1
Operating Humidity range:
(5~95)% (no gel)
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month bi-directional energy meter
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing or as per client's requirement for bi-directional energy meter
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 To be negotiated
Product Description

Elecnova Sfere720C high efficient power quality analuzer is an integrated device with compact design. Its 8MB inside memory ensures the running speed of the device. Modbus--RTU, Modbus TCP, Profibus-DP protocols meeet a wide range of customers' need.

Product Name
Elecnova Sfere720C LCD display 1st-63rd harmonic RS485 digital 3 phase bi-directional energy meter
Data Log
Demand record
Max./Min value record
Off-limit record
SOE record
Accuracy
V/A: 0.2%
P/Q/S/PF: 0.2%
F: ±0.01Hz
±kwh: 0.2S
±Kvarh:2
Power Quality
THD
Harmonics up to 63rd
Sequence component
Unbalance
Crest factor and K factor
Storage Temperature
-30℃~80℃
Relative Humidity
Less than 93% RH
Optional Module
AC digital inputs/dry digital inputs/relay outputs/analog inputs/temperature inputs/analog outputs/Modbus-TCP/Profibus-DP V0/RS485, Modbus-rtu
Consumption
Less than 5VA
Installation
