JD194-BS4I3T electrical measuring three phase ac current transducer with analog output

FOB Reference Price:Get Latest Price
US $114.7-160.6 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
JD194-BS4I3T
Usage:
Other
Theory:
Hall Sensor
Output:
Digital Sensor
Certificate:
ISO9001, CE
Communication:
RS485 Modbus-RTU
Accuracy:
0.2%/0.5%
Rated current:
AC 1A, 5A
Operating temperature:
-40 ~+70℃
Storage temperature:
-40 ~+85℃
Model:
JD194-BS4I3T
Altitute:
≤2500m
Relative Humidity:
≤93%RH
Warranty:
2 Years
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing, or according to customer's requirements
Port
Shanghai
alt



1.Product display





2.product introduction

BS series measuring transmitters are a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.



This series digital display AC voltage meters have high environment adaptability because their working temperature range is -40~70 and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.



3.Technical specification

Model

Feature

JD194–BS4I3T



Input

Rated value

1A, 5A



Overload

Continuous

1.2In





Instantaneous

10In/5s



Absorption power

(each phase)

0.2VA



Frequency

45~65Hz

Output

Rated value

0-5V,0-10V,0-5mA,0-20mA,4-20mA (select one)



Load capacity

Current output load≤ 510Ω, Voltage output load≥20k



Output ripple

≤ 2 times of basic error



Accuracy

0.5

Power supply

Working range

AC/DC 80~270V ,DC19~50V



Power consumption

5VA

Response time

400ms

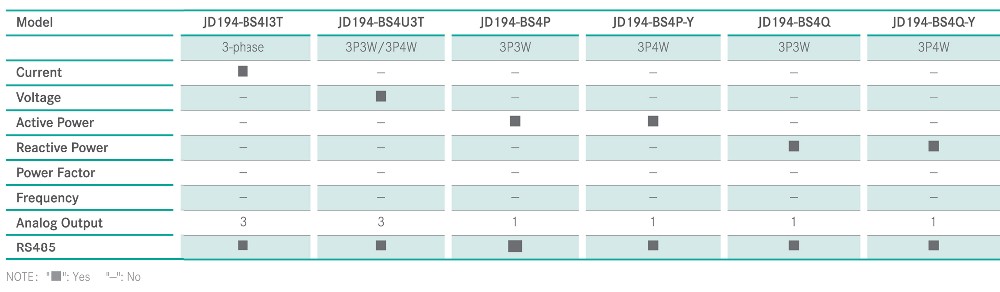

4.Similar products
