Elecnova JD194-BS4I electrical measuring single phase AC current transducer ammeter

FOB Reference Price:Get Latest Price
$52.90 - $74.10 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
JD194-BS4I
Usage:
Other
Theory:
Hall Sensor
Output:
Analog Sensor
Product name:
transducer ammeter
Certificate:
CE, ISO9001 CE14001
Rated Current:
AC 1A, 5A
Communication:
RS485 Modbus-RTU
Frequency:
45-65 Hz
Storage temperature:
-40 ~+85℃
Relative Humidity:
≤93%RH
Altitute:
≤2500m
Accuracy:
0.2%/0.5%
Warranty:
2 Years
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month transducer ammeter
Packaging & Delivery
Packaging Details
1 pc/ctn, standard export packing, or according to customer's requirements for transducer ammeter
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 To be negotiated
Product Description

BS series measuring transmitters are a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.


Advantage

*Wide range of working temperature range (-40~70℃ )

*EMC better than III level

*Small size and din-rail mounted

*High accuracy(0.5, 0.2)

Product name
Elecnova JD194-BS4I electrical measuring single phase AC current transducer ammeter
Wiring
Single phase
Transmitting output
0-5mA, 0-20mA, 4-20mA
Note: only one type can be selected.
Accuracy
0.2, 0.5(defaulted)
Rated current value
AC1A, AC5A
Continuous overload
1.2In
Instantaneous overload
10In/5s
Power consumption
≤0.2VA
Frequency
45~65Hz
Power supply working range
AC/DC 80~270V, DC19~50V
Power consumption
≤5VA
Response time
≤400ms
Size

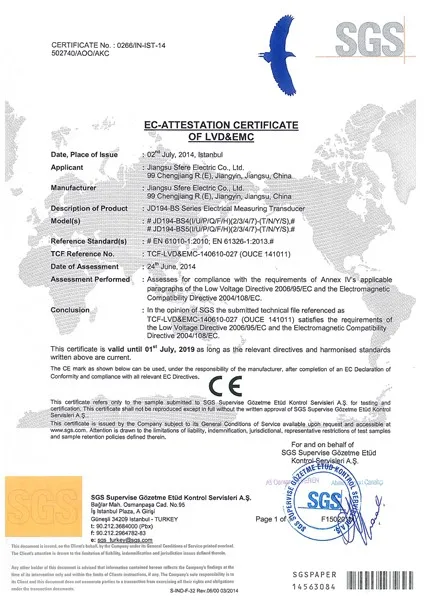

Certifications
Packing & Delivery

Air bag protection

Inner box for each

Master carton box


Delivery and Shipment


Delivery time: 5-7days after sales confirmation
Transportation: By Air or by Sea
Port of laoding: Shanghai port, or Any port of China
Product guaranty: 2 years
