Sfere200 three phase ac digital panel mounted power quality analyser data logger

FOB Reference Price:Get Latest Price
$404.40 - $566.20 / Pieces | 1 Piece/Pieces (Min. Order)
Usage:
Auto Testing Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Elecnova
Model Number:
Sfere200
Power:
Electronic
Product name:
power meter data logger
Phase:
three phase
Measuring range:
100-415V AC 100-350V DC
Accuracy:
0.5
Supply Voltage:
220V
Operating Temperature:
-25~70℃
Dimensions:
96x96mm
Display:
LCD
Warranty:
2 Years
Service:
OEM ODM
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Paper box, foam box or according to your requirement
Port
Shanghai Port
Product Description

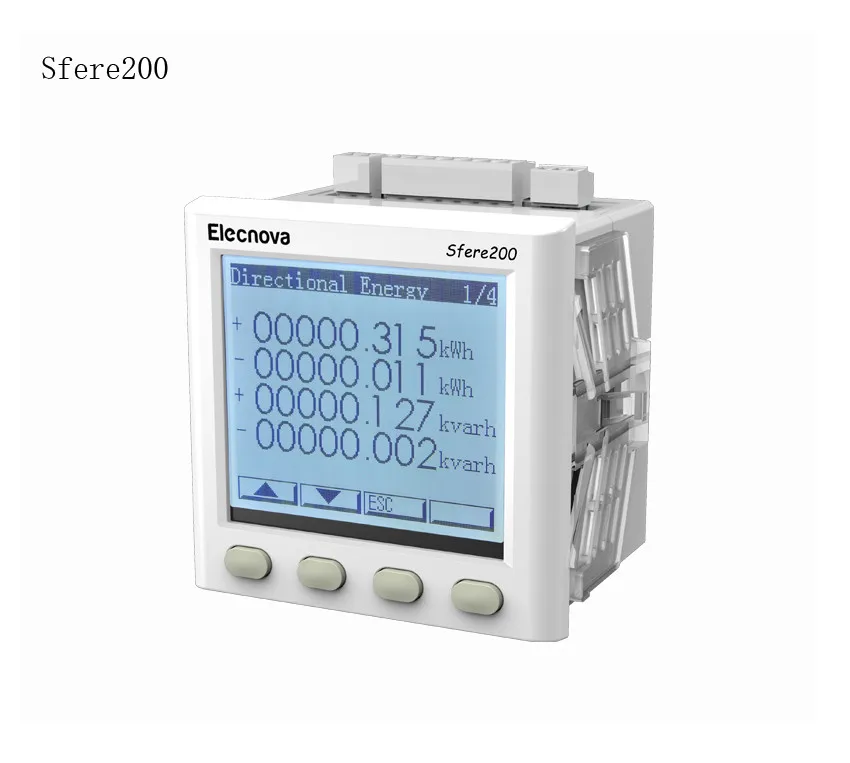

Sfere200 three phase ac digital panel mounted power quality analyser data logger which are accurate electrical parameters measurement, time of use, energy freezing, power quality analysis, real-time grid waveform and phase measurement, SOE, load waveform, max/min value recording, demand statistical recording and 2nd~39th order harmonic measurement. They are equipped with many I/O modules for monitoring and controlling the working state of field device. Sfere series products have RS485 communication interface which are compliant with industrial standard and supporting MODBUS-RTU protocol.

Technical
                                                                  ITEM
                           PARAMETERS




Accuracy

Electric quantity
Voltage, current: 0.2 grade
Active, reactive and apparent power: 0.5 grade
Frequency:±0.02 Hz


Electric energy
Active electric energy (IEC62053-22 0.5S grade)
Reactive electric energy (IEC62053-23 2 grade)









Signal input
Wiring mode
Three phase four wire, Three phase three wire, Single phase



Voltage
Rated value
400V(L-N)/690V(L-L)

Overload
Continuous: 1.2 times of rated value
Instantaneous: 2 times of rated value during 1 minute
Power consumption
<0.4VA(per phase)
Impedance
>1 MΩ




Current
Rated value
1A/5A

Overload
Continuous: 1.2 times of rated value
Instantaneous: 10 times of rated value during 5 seconds
Power consumption
< 0.1VA (per phase)
Impedance
<20mΩ
Frequency
45~65Hz

Power supply
Operating range
AC(100-415)V / DC(100-350)V
Power consumption
< 5VA
Electric energy pulse output
Optoelectronic isolation output, pulse width 80ms±20% (> 5Hz, the duty cycle is 50%)
Relay output
Capacity:AC250V5A or DC30V5A
Isolation voltage 2500VAC
Analog output
Accuracy: 0.5%
Load resistance R ≤ 350Ω
Digital input
Dry contact node
Isolation voltage: 2500VAC

Communication module

RS485 interface
MODBUS-RTU protocol
Baud: 2400~9600bps
Check mode: N81/O81/E81/N82



Mechanical features

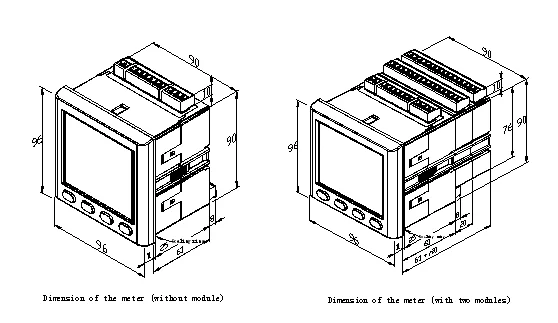

Dimension
Panel: 96×96mm
Cutout: 91×91mm
Depth: 65mm (without module)
Depth of module:20mm

Protection
Panel IP66
Case IP20






Environment conditions
Operating temperature
(-10~+55)℃
Storage temperature
(-20~+75) ℃
Relative humidity
(5~95)%(no condensation at 50°C)
Anti-pollution grade
2
Measurement type
CAT III


Isolation
Signal, power supply and output terminals to case resistance > 100MΩ
Isolation voltage between signal, power supply and output > AC2000V RMS
EMC
>III grade
Monitoring Solution
Production Process

                              SMT

                           AOI Test

                   Plug-In Mounting

                       Wave Soldering

                          Assembling

                            Inspection

Packing & Delivery
1. Bubble film packaging
2. Suitable boxes packaging
3. Carton packaging
